Times Microwave EZ-195-TF-RP-X TNC Female Reverse Polarity Crimp/Captivated for LMR-195 Coaxial Cable

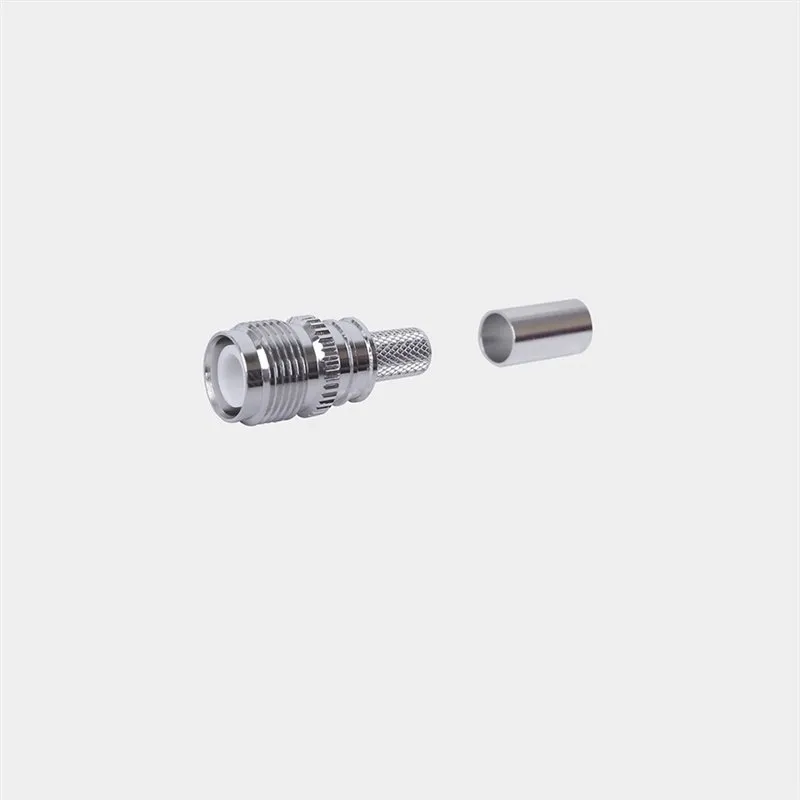

EZ-195-TF-RP-X Connector is a high-quality, Reverse Polarity TNC Female (jack) connector designed for reliable, rapid termination of LMR-195 and comparable flexible low-loss coaxial cables. As a bulkhead mount connector, it’s perfect for securing a feed-through connection on enclosures, equipment panels, and boxes. Utilizing the innovative EZ-Fit technology, this connector ensures an easy, solderless installation while delivering excellent RF performance up to 6 GHz.
Features & Benefits
- Bulkhead Mounting: Includes an integrated hex nut and lock washer, allowing for secure panel mounting on enclosures up to a specified thickness, creating a stable pass-through connection.
- EZ-Fit Solderless Design: Features a revolutionary spring-finger inner contact that eliminates the requirement for soldering the center pin, significantly speeding up installation and removing potential failure points associated with field soldering.
- Reverse Polarity (RP-TNC): Adheres to the Reverse Polarity TNC standard, essential for connectivity in many Wi-Fi, WLAN, and other licensed/unlicensed wireless applications.
- No Braid Trim Required: The design simplifies cable preparation by eliminating the need to trim the coaxial cable braid, guaranteeing optimal cable geometry and maximizing VSWR (Voltage Standing Wave Ratio) performance.
- Superior Durability: Constructed with a rugged brass body and finished with Alballoy (a white bronze alloy) for exceptional resistance to corrosion and wear.
Detailed Technical Specifications
| Attribute | Detail |
| Connector Style | TNC (Reverse Polarity) |
| Gender | Female (Jack) |
| Interface | Straight, Bulkhead Mount |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Alballoy |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE |
Typical Applications
- Wireless Access Points (WAPs) & Routers: Providing robust external antenna connections on networking hardware enclosures.
- Enclosure Feedthroughs: Creating sealed, reliable entry points for coaxial cable on weatherproof NEMA boxes and equipment chassis.
- IoT & Remote Monitoring Devices: Securing the antenna port on industrial sensors and telemetry equipment.
- OEM Integration: Ideal for manufacturers needing a high-performance, easy-to-install connector for their finished products.
Installation Requirements
- Crimp Tool: Use the recommended hex crimp die (typically .213″ HEX) for the ferrule.
- Strip Tool: A dedicated LMR-195 cable prep tool (e.g., CST-195/200) ensures the precise strip dimensions needed for the EZ-Fit connector.
- Bulkhead Hole Size: Requires a specific panel cut-out (refer to the official datasheet for the exact diameter, typically around 1/2 inch) for mounting.
