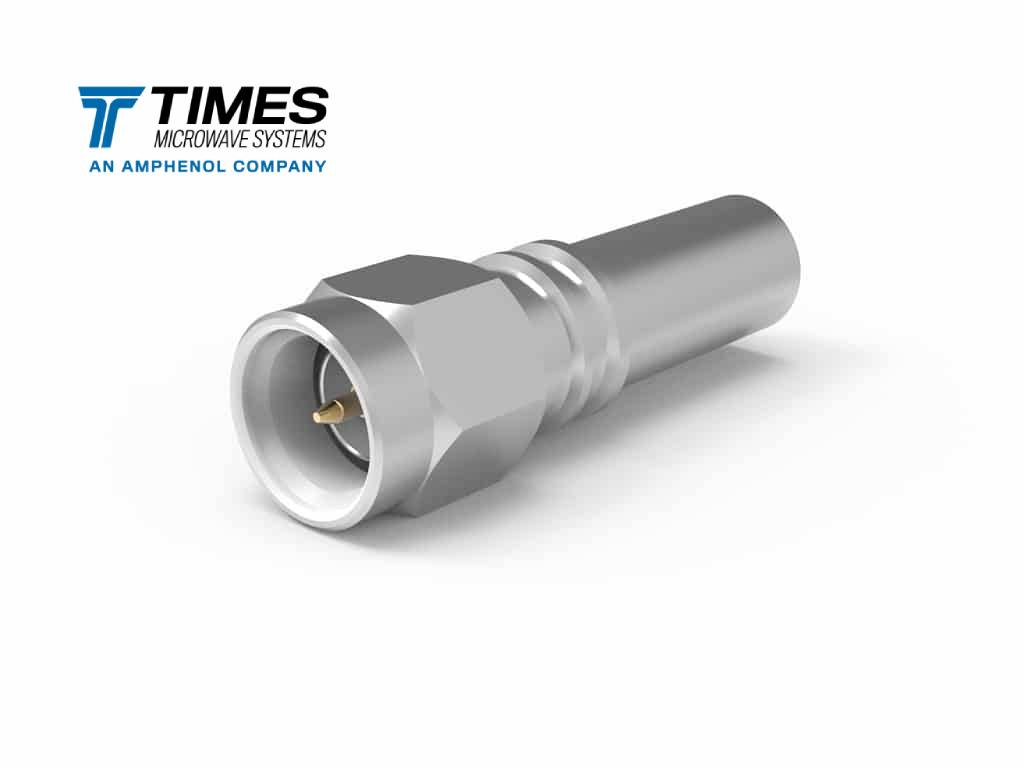

Times Microwave EZ-195-SM-X SMA Male Straight Connector for LMR-195 Coaxial Cable
EZ-195-SM-X Connector is a high-performance SMA Male (plug) connector specifically engineered for rapid, reliable termination of LMR-195 and similar flexible low-loss coaxial cable. Part of the industry-leading EZ-Fit series, this connector is designed to deliver superior electrical performance up to 6 GHz while drastically simplifying the installation process. It is the ideal choice for compact RF devices and systems where space and quick, flawless assembly are crucial.
Key Features & Advantages
- SMA Form Factor: Provides a small, high-frequency interface widely used in cellular, GPS, and compact wireless systems.
- EZ-Fit™ Technology: Features a solderless, spring-finger inner contact design, eliminating the need for soldering the center pin and minimizing installation time and potential human error.
- Superior VSWR Performance: Engineered for optimal impedance matching, offering excellent Voltage Standing Wave Ratio (VSWR) across the operating frequency range up to 6 GHz.
- No Braid Trim Design: Simplifies cable preparation by removing the requirement to trim the coaxial cable braid, which helps ensure consistent electrical integrity and reduces FOD (Foreign Object Debris).
- Rugged and Reliable: Built with a durable brass body and finished with nickel plating for excellent environmental protection and long-term reliability.
Detailed Technical Specifications
| Attribute | Detail |
| Connector Style | SMA |
| Gender | Male (Plug) |
| Interface | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Non-Solder) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Applications
The compact size and high-frequency capabilities of the EZ-195-SM-X make it essential for various professional and commercial applications:
- Cellular & 4G/5G Systems: Ideal for connecting modems, antennae, and small-cell infrastructure.
- GPS & Navigation Systems: Providing reliable connections in precise timing and location applications.
- Telemetry & Industrial IoT (IIoT): Used in compact sensors, remote monitoring units, and data loggers.
- Test & Measurement: Suitable for jumper cables and equipment connections requiring the SMA interface.
Installation & Recommended Tooling
The EZ-Fit design ensures a straightforward installation, but using the correct tooling is critical for achieving rated performance:
- Crimping Tool: Requires the appropriate hex die size (typically .213″ HEX) for the ferrule to ensure a secure and uniform crimp.
- Cable Prep Tool: A dedicated LMR-195 strip tool (e.g., CST-195/200) is highly recommended for accurate and repeatable cable preparation.
- Installation Guide: Always refer to the official manufacturer’s instructions for the specific cable strip length.
