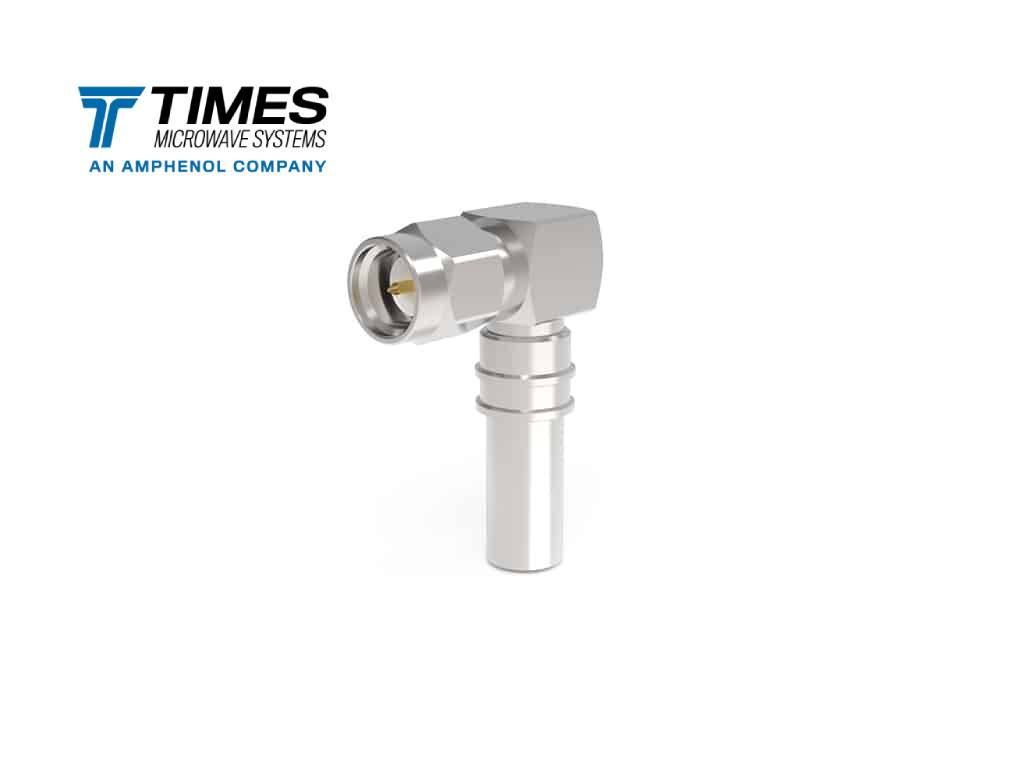

Amphenol Times Microwave Systems EZ-195-SM-RA-X SMA Male RA Plug
EZ-195-SM-RA-X Connector is a high-performance, Right Angle SMA Male (plug) connector specifically designed for terminating LMR-195 and similar flexible low-loss coaxial cable. As part of the EZ-Fit series, this connector is the ideal solution for applications requiring a 90-degree cable exit directly from the equipment or enclosure, minimizing the cable footprint and reducing strain. It combines the small, high-frequency SMA interface with fast, reliable, solderless installation.
Features
-
No-Solder Design: Captivated center contact eliminates the need for soldering, ensuring consistent impedance and faster field terminations.
-
Right-Angle Orientation: Perfect for applications with limited clearance or specific cable routing requirements.
-
Tri-Metal Plating: Provides excellent corrosion resistance and superior conductivity compared to standard nickel plating.
-
Broad Compatibility: Specifically optimized for LMR-195, but also compatible with RG-58 and 141-type cables.
Specifications
| Attribute | Detail |
| Connector Style | SMA |
| Gender | Male (Plug) |
| Interface | Right-Angle (90°) |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Non-Solder) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Applications
-
Wireless Infrastructure: Base stations, antennas, and cellular boosters.
-
Industrial Connectivity: M2M communications and IoT gateways.
-
GPS/Navigation: High-vibration environments requiring secure RF links.
-
Field Repair: Rapid onsite cable assembly without the need for power tools (soldering irons).
Why Source from Soyuztec Trading LLC?
As a trusted provider of high-end RF components, Soyuztec Trading LLC ensures you receive genuine Times Microwave Systems products. We support your projects with
-
Technical Expertise: Guidance on selecting the right LMR cables and connectors.
-
Inventory Availability: Reliable stock for quick turnaround on urgent infrastructure projects.
-
Quality Assurance: Guaranteed authentic parts to prevent VSWR issues and signal loss.
