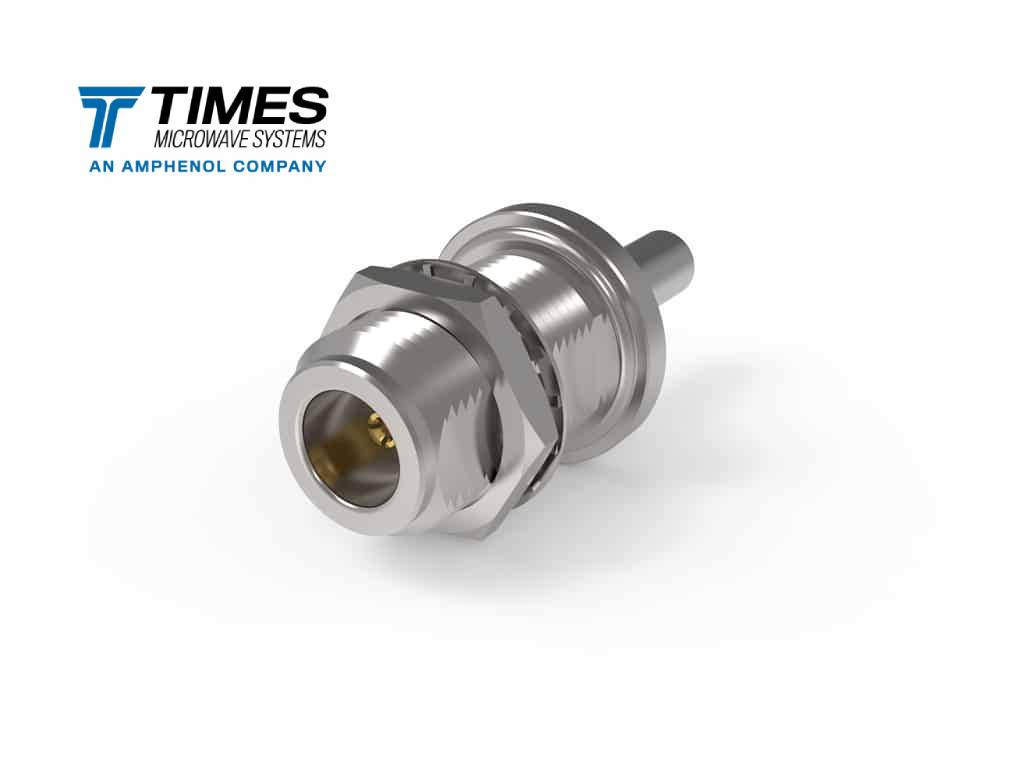

Times Microwave EZ-195-NF-BH-X N-Female Bulkhead Solderless Crimp Connector
EZ-195-NF-BH-X Connector is a high-performance N-Female (jack) connector specifically designed for bulkhead mounting and quick, reliable termination of LMR-195 and similar flexible low-loss coaxial cable. As part of the revolutionary EZ-Fit series, this connector provides a robust, weather-resistant, and high-frequency feed-through connection on enclosures and equipment panels. It offers the traditional ruggedness of the N-Type interface combined with fast, solderless installation up to 11 GHz.
Features
-
Solderless Installation: Utilizes a spring-finger inner contact and a crimp-style outer contact, significantly reducing assembly time and human error.
-
Bulkhead Mounting: Includes a front-side nut for secure panel-mount or enclosure installations.
-
Superior Reliability: Designed for high-vibration and extreme-temperature environments ( -40 C to +125 C), preventing center conductor contraction issues.
-
No Braid Trim Design: Guarantees optimal termination by eliminating Foreign Object Debris (FOD) during the stripping process.
-
Alballoy Finish: Provides excellent corrosion resistance and superior electrical conductivity compared to standard nickel plating.
Specifications
| Attribute | Detail |
| Connector Style | N-Type |
| Gender | Female (Jack) |
| Interface | Straight, Bulkhead Mount |
| Impedance | 50 Ohms |
| Max Frequency | 11 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Applications
- Wireless Infrastructure: Providing a robust external antenna port on base stations, repeaters, and amplifiers.
- NEMA Enclosures: Creating reliable, weatherproof cable entry/exit points for outdoor electronic equipment.
- Test & Measurement Panels: Used for connecting test equipment where a durable, chassis-mounted jack is required.
- OEM Integration: Ideal for manufacturers needing a high-performance, easy-to-install connector for their finished products.
Why Buy from Soyuztec Trading LLC?
As the exclusive distributor for Times Microwave Systems in the MENA region, Soyuztec ensures you receive 100% authentic components with full manufacturer warranties.
-
Local Inventory: Ready stock available at our Dubai warehouse for immediate dispatch.
-
Technical Support: In-house experts available for RF system design and link budget calculations.
-
Custom Assemblies: We can provide pre-terminated LMR-195 cable assemblies using the EZ-195-NF-BH-X to your exact length specifications.
