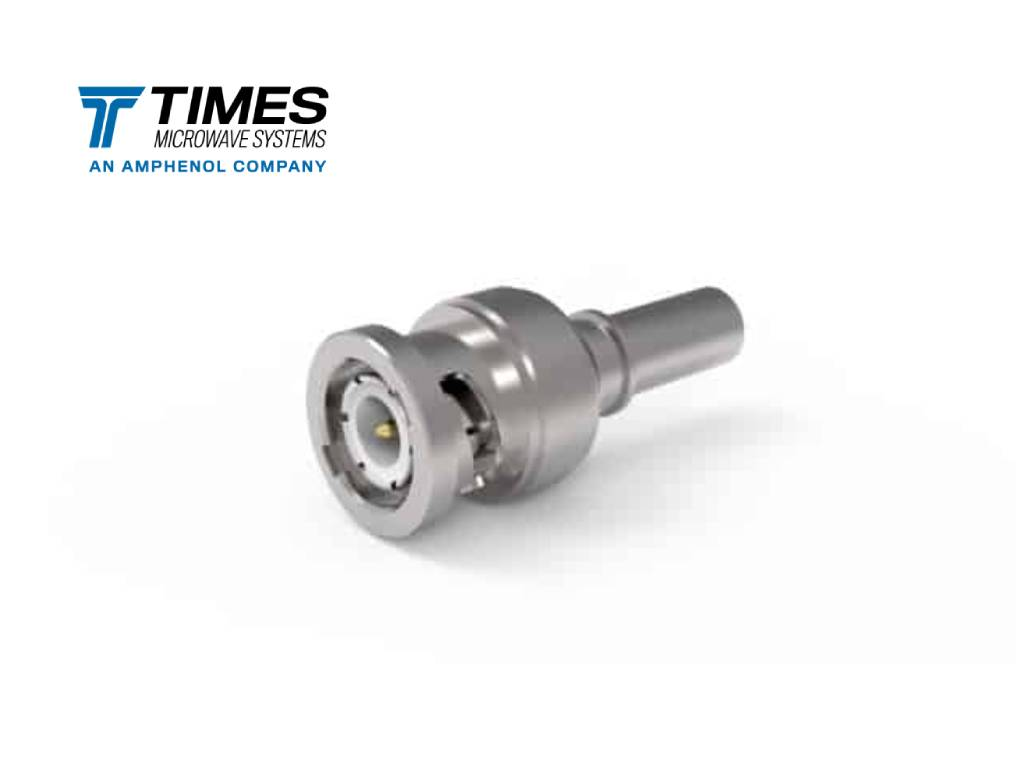

Times Microwave EZ-195-BM-X BNC Male Plug Straight, EZ Style
EZ-195-BM-X Connector is a high-performance BNC Male (plug) connector specifically engineered for rapid, reliable termination of LMR-195 and similar flexible low-loss coaxial cable. As a key component of the EZ-Fit series, this connector provides the popular bayonet-style BNC interface with the cutting-edge benefit of solderless installation. It’s the ideal choice for applications requiring quick, reliable connections, particularly in video, instrumentation, and legacy RF systems.
Key Features & Advantages
- BNC Bayonet Coupling: Features the standard BNC quick-disconnect bayonet mechanism, allowing for fast, secure connection and disconnection without threading.
- EZ-Fit™ Solderless Technology: Utilizes a revolutionary spring-finger inner contact that eliminates the need for soldering the center pin, significantly reducing installation time and complexity while minimizing field errors.
- Broad Application Range: Ideal for applications up to 3 GHz, making it perfect for video systems, test leads, and standard RF communication.
- Simplified Cable Preparation: The unique EZ-Fit design eliminates the need to trim the coaxial cable braid, ensuring consistent electrical geometry and maximizing assembly quality.
- Durable Construction: Built with a rugged brass body and finished with nickel plating for excellent wear and corrosion resistance.
Specifications
| Attribute | Detail |
| Connector Style | BNC |
| Gender | Male (Plug) |
| Interface | Straight, Bayonet Coupling |
| Impedance | 50 Ohms |
| Max Frequency | 3 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Typical Applications
- Security & Surveillance (CCTV): Providing fast, reliable connections for video cameras and monitoring equipment.
- Test and Measurement: Used extensively for oscilloscope probes, signal generators, and general lab jumpers.
- Standard RF Communications: Connecting antennas and equipment in lower-frequency (under 3 GHz) systems.
- Data and Instrumentation: General-purpose coaxial cable termination in rack systems and control panels.
Installation & Recommended Tooling
- Crimping Tool: The required CT-240-200-100 must be used to ensure a uniform and secure crimp on the ferrule.
- Cable Prep Tool: A dedicated CST-195/200 is highly recommended to achieve the exact conductor and dielectric exposure required for the solderless contact.
