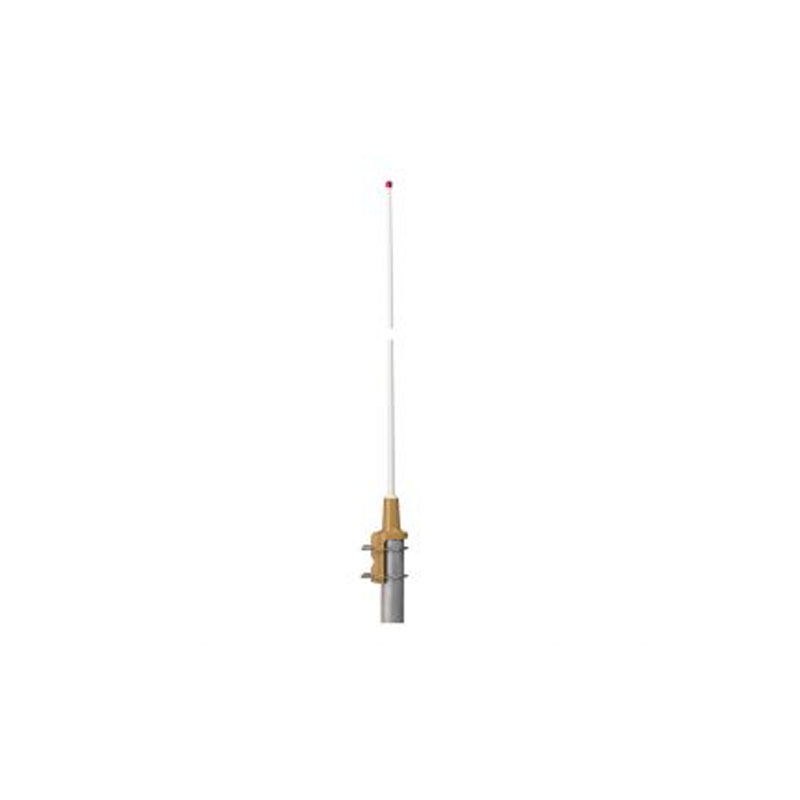

Procom CXL 70-3C/S Long range antenna
Procom CXL 70-3C/S Long range antenna is a premium-grade, 3 dBd gain, omnidirectional base station antenna designed specifically for the 406 – 430 MHz UHF band. Engineered for longevity and performance, this antenna is the gold standard for mission-critical radio systems, including private mobile radio (PMR) and public safety networks.
Features
-
Broadband Performance: Covers the 406–430 MHz range without the need for additional tuning.
-
Exceptional Durability: Encased in a high-quality, conical glass fibre tube with low wind load for extreme weather resistance.
-
Protection for Electronics: All metal parts are DC-grounded to significantly reduce noise caused by atmospheric discharges and provide lightning protection.
-
High Power Handling: Rated for up to 150W, making it suitable for high-duty cycle repeaters.
-
Integrated Mounting: Supplied with the “C” mast mount, a heavy-duty, chrome-plated solid brass bracket for secure installation on masts (38–54 mm diameter).
Specifications
| Parameter | Specification |
| Frequency Range | 406 – 430 MHz |
| Antenna Type | Collinear, Broad-banded |
| Gain | 3 dBd (approx. 5.1 dBi) |
| Impedance | 50 ohm |
| Polarization | Vertical |
| Max. Power | 150 Watts |
| Bandwidth | 24 MHz |
| VSWR | < 1.5:1 |
| Connector | N-female |
-
Materials: Radome: Polyurethane-coated glass fibre; Mounting: Chrome-plated brass.
-
Total Height: Approx. 1.5 meters.
-
Weight: Approx. 2.1 kg.
-
Wind Load: 43 N (at 160 km/h).
Ideal Applications
-
Fixed-site repeaters.
-
Industrial telemetry and SCADA.
-
Emergency service dispatch centers.
-
Marine UHF communications.
