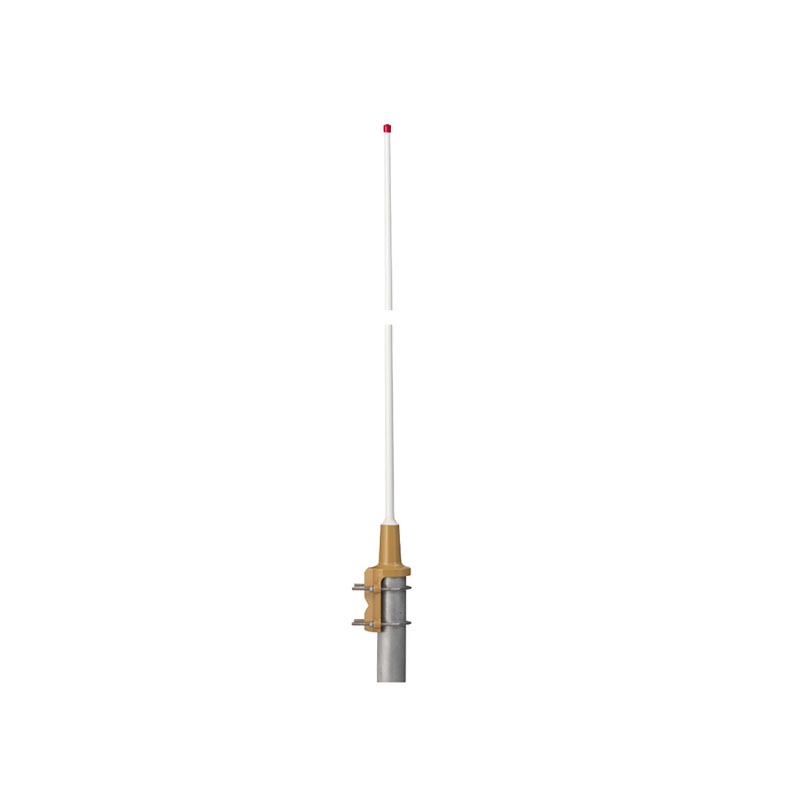

Procom CXL 3-1LW Professional VHF Base Station Antenna
CXL 3-1LW Base Antenna is a high-performance, 0 dBd gain, omnidirectional base station antenna designed specifically for the VHF 118 – 137 MHz band. Built to withstand the harshest marine and industrial environments, it is the industry standard for ground-to-air communication and maritime VHF applications.
Features
-
Broadband Performance: Covers the entire civil aircraft band (118-137 MHz) without the need for tuning.
-
Built to Last: Constructed with a high-quality conical glass fiber tube for low wind load and maximum protection against corrosion.
-
Exceptional Durability: All metal parts are DC-grounded to significantly reduce noise caused by atmospheric discharges and provide lightning protection.
-
Easy Installation: Comes with the versatile “LW” mast mount—a lightweight, multipurpose epoxy-coated aluminum bracket that fits various mast diameters.
Specifications
| Feature | Specification |
| Model | CXL 3-1LW |
| Frequency Range | 118 – 137 MHz |
| Antenna Type | Broadband Coaxial Dipole |
| Gain | 0 dBd (2.1 dBi) |
| Polarization | Vertical |
| Impedance | 50 $\Omega$ |
| Max Power | 150 Watts |
| Connector | N-female |
| Survival Wind Speed | 200 km/h |
| Total Height | Approx. 1.5 meters |
Typical Applications
-
Air Traffic Control (Ground-to-Air)
-
Maritime Coastal Stations
-
Industrial VHF Private Radio Networks
-
Offshore Platforms
