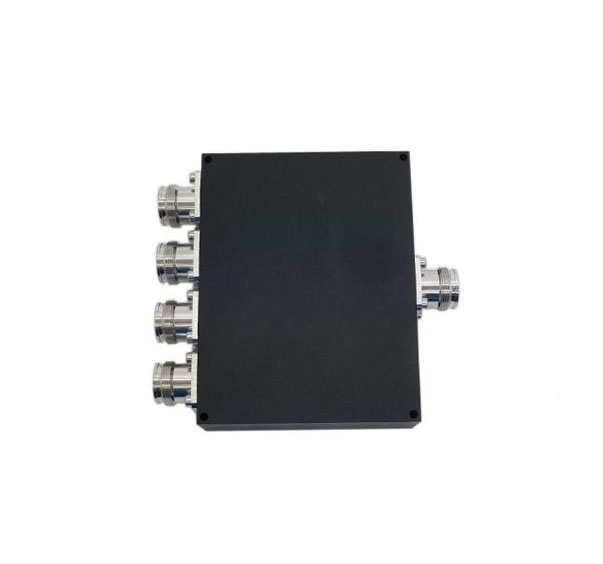

SP-150 4 Way High Performance Power Splitter
SP-150 4 Way Splitter is a professional-grade, 4-way power splitter designed for high-density RF signal distribution. Engineered for minimal insertion loss and maximum isolation, this unit is the ideal solution for telecommunications, laboratory testing, and complex antenna systems.
Features
-
Ultra-Wideband Performance: Consistent signal distribution across a broad frequency range.
-
Low Insertion Loss: High-efficiency circuitry ensures minimal signal degradation.
-
Robust Isolation: Prevents port-to-port interference, maintaining signal integrity.
-
Durable Housing: Housed in a ruggedized, corrosion-resistant aluminum chassis with high-quality connectors.
-
Precision Matching: Excellent VSWR (Voltage Standing Wave Ratio) for stable system performance.
Specifications
| Feature | Specification |
| Configuration | 4-Way (1 In / 4 Out) |
| Frequency Range | 10 MHz – 1000 MHz |
| Insertion Loss | < 0.8 dB (typical) |
| Isolation | > 22 dB |
| Impedance | 50 Ω (Optional 75 Ω available) |
| Max Input Power | 2 Watts (as a splitter) |
| Connector Type | BNC Female (Standard) / SMA (Optional) |
| Operating Temp | -40°C to +85°C |
Applications
-
Signal Monitoring: Distribute a single source to four different analyzers or monitors simultaneously.
-
Antenna Arrays: Split power from a single transmitter to multiple antenna elements.
-
Lab Testing: Divide test signals across multiple devices under test (DUT) for parallel verification.
-
CATV/Broadband: Reliable distribution for high-frequency communication networks.
